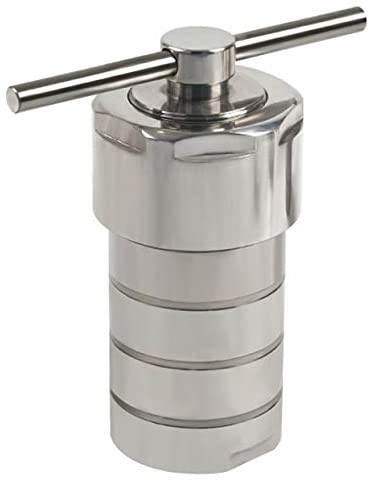

Hydrothermal Synthesis Autoclave Reactor with PTFE Lined Vessel
includes SS304 frame and PTFE liner
The Hydrothermal Autoclave reactor is used to carry hydrothermal reaction at high pressure and high temperatures. The reactor is mainly made up of two parts; outer high-quality stainless steel jacket and inner Teflon liner or chamber.
Specifications:
- Material: Reactor Shell made of high-quality nonmagnetic 304 stainless steel (316SS can be made on special request)
- Material -Liner: PTFE (Poly Tetra Fluoroethylene: Highly chemically resistant. Resistant to Acid and Alkali, and various organic solvents)
- Parts: Reactor Body, Reactor Lid, Bottom Pad, Top Pad, Liner, Liner Lid
- Maximum operating temperature: ≤230°C
- Safe operating temperature: – 200°C
- Working Pressure: ≤3MPa or 30 Bar
- Recommended Heating and Cooling Rate: ≤5°C/min
- Easy to handle
- Can be customized
- Cost effective
Volume | 25ml | 50ml | 100ml | 150ml | 200ml | 300ml | 500ml |
Material | Body material: SS304 ; Liner: PTFE | ||||||
Design pressure | Standard 30 bar | ||||||
Temperature | Standard temperatures 230℃, heating and cooling speed: ≤ 5℃/ min | ||||||
Cap/Max Diameter (mm) | 54 | 65 | 75 | 97 | 107 | 110 | 135 |
Total Height (mm) | 120 | 140 | 155 | 190 | 210 | 210 | 215 |
Total Weight (kg) | 1 | 1.65 | 2.3 | 4.8 | 6.1 | 6.7 | 10.6 |
